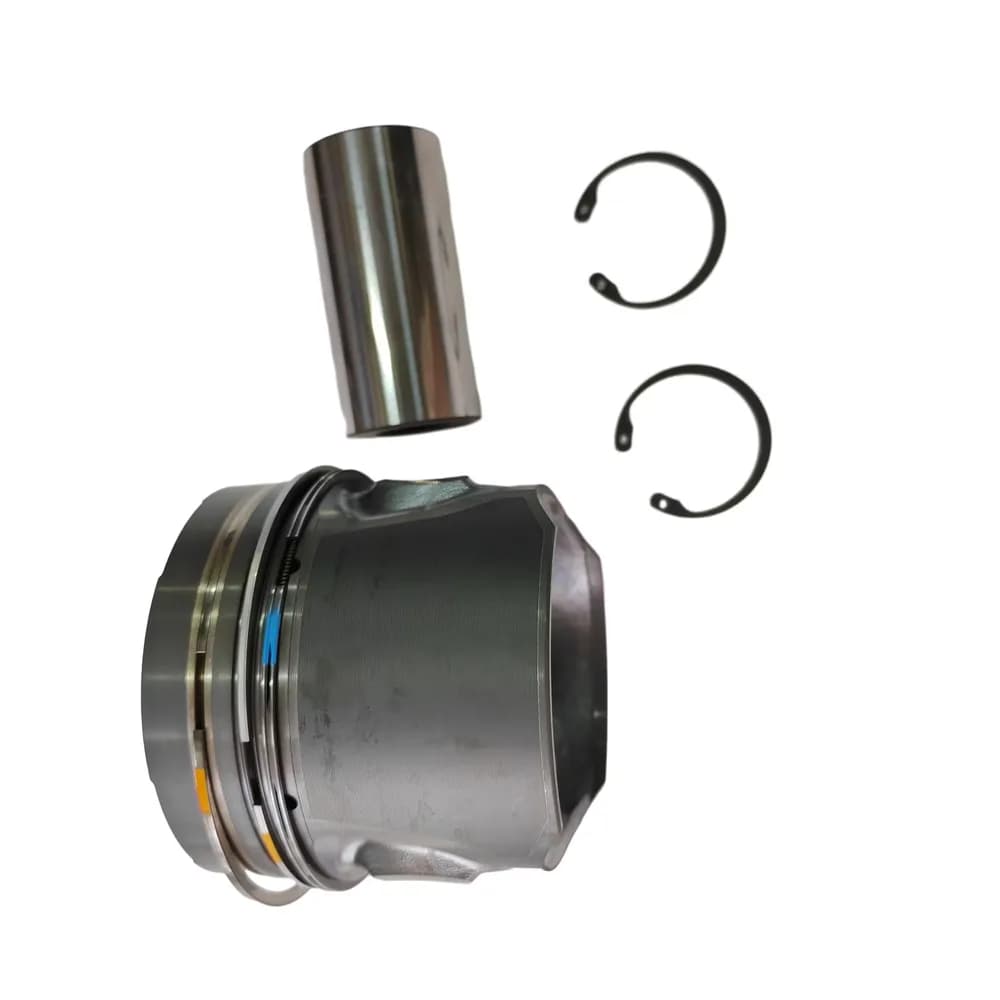

Pistons

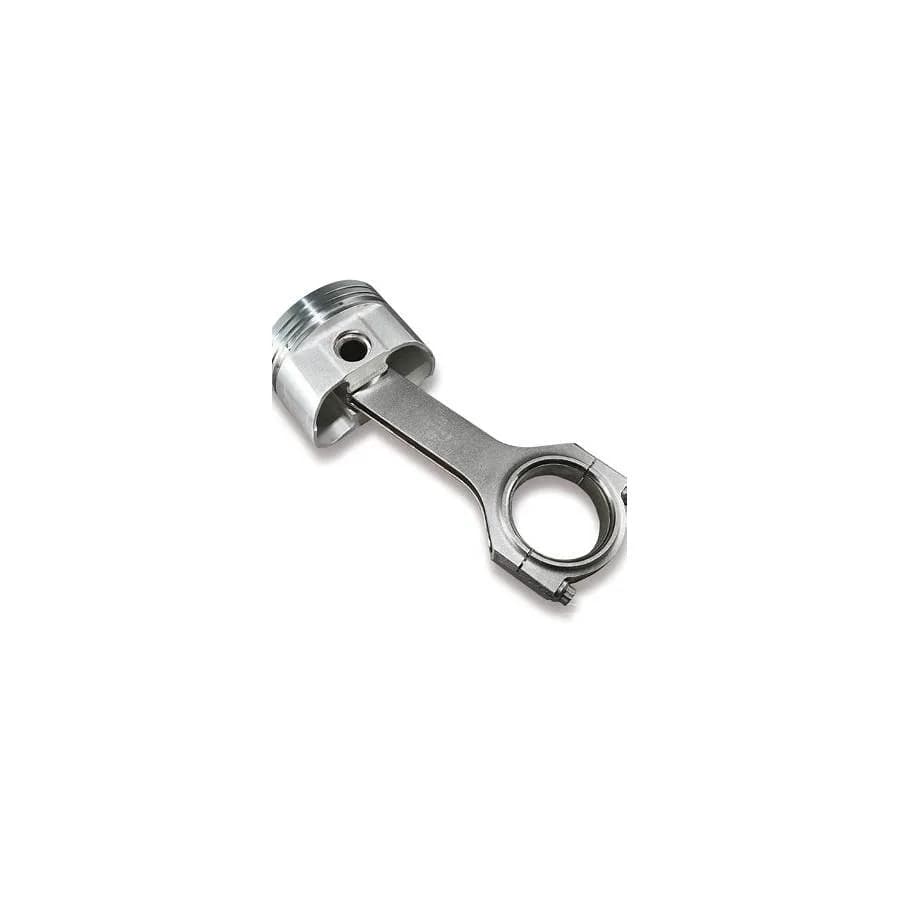

Pistons convert combustion pressure into crankshaft rotation. Diesel pistons in turbocharged common-rail engines operate under very high cylinder pressures and temperatures, and are designed with combustion bowls, ring carrier inserts and oil cooling galleries that must match the engine exactly.

Design features

• Combustion bowl – shaped for the engine's injection pattern. Pistons for mechanical and common-rail versions of related engines are often different.
• Ring carrier insert – a Ni-Resist (austenitic cast iron) insert cast into the top ring groove on many diesel pistons to resist groove wear.
• Cooling gallery – an internal channel fed by oil jets, used on higher-output diesel engines.
• Skirt coating – graphite or polymer coatings reduce scuffing during break-in.

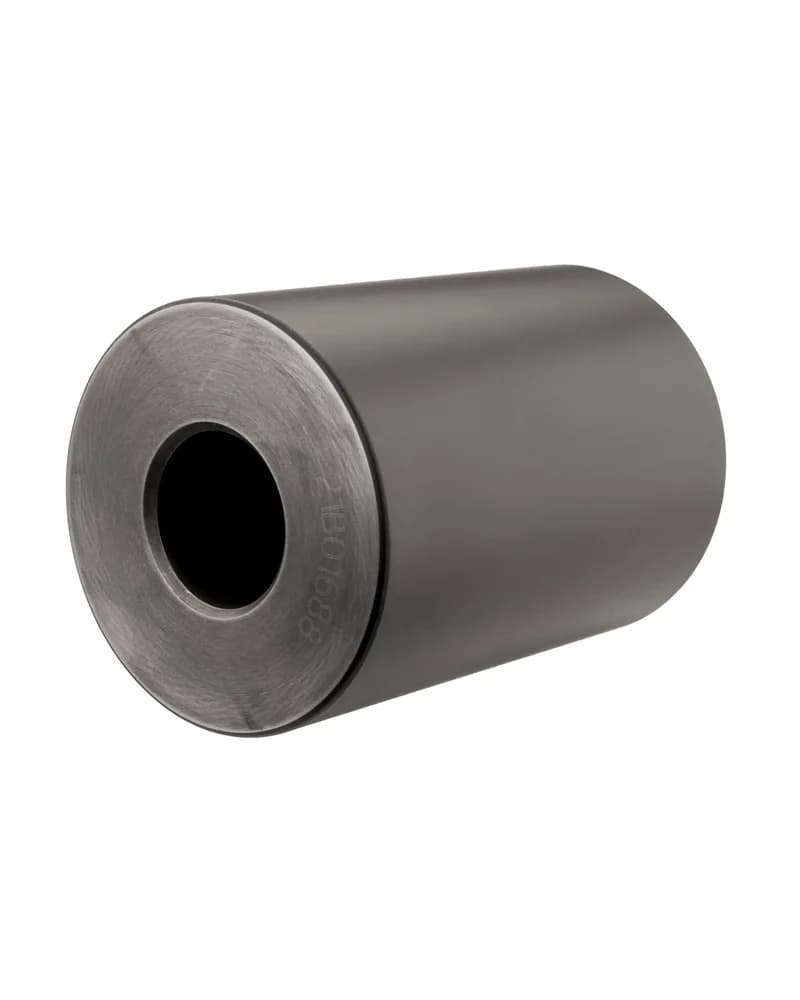

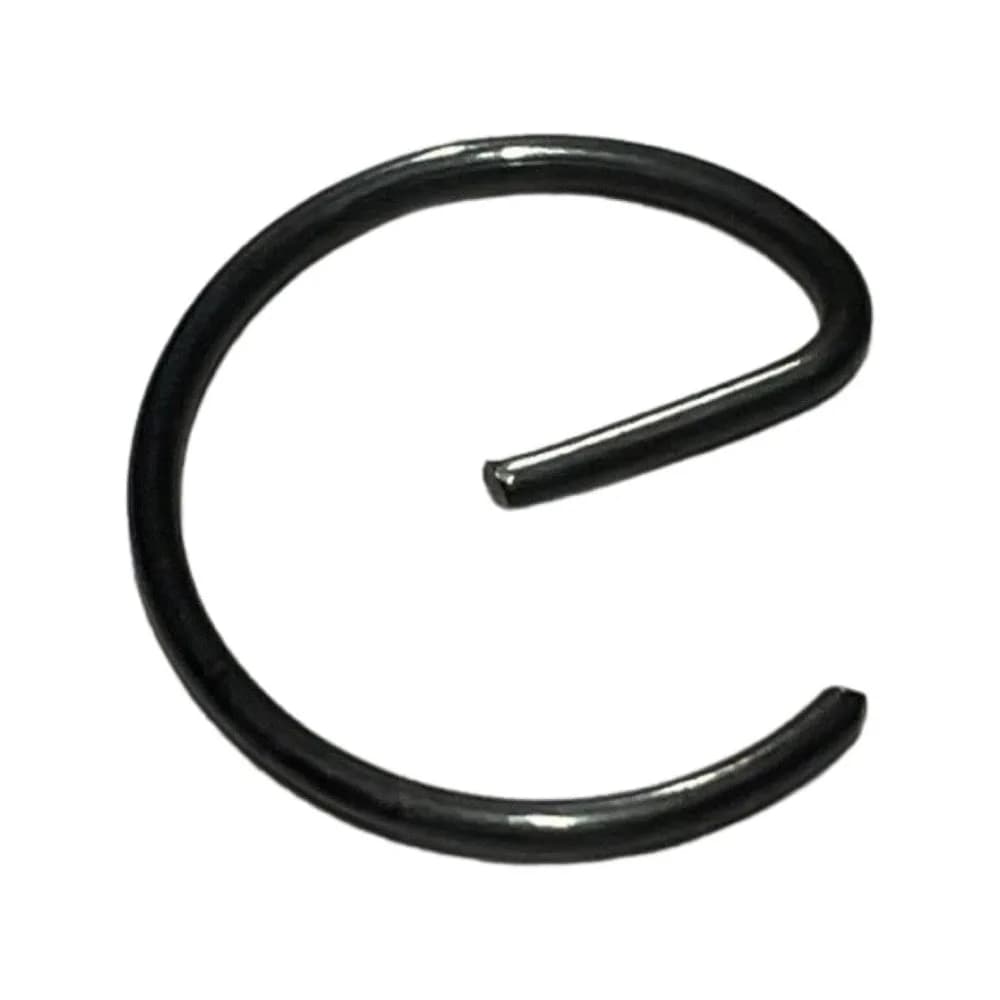

• Pin offset and orientation marks – the piston must be installed facing the correct direction.

Sizes and grades

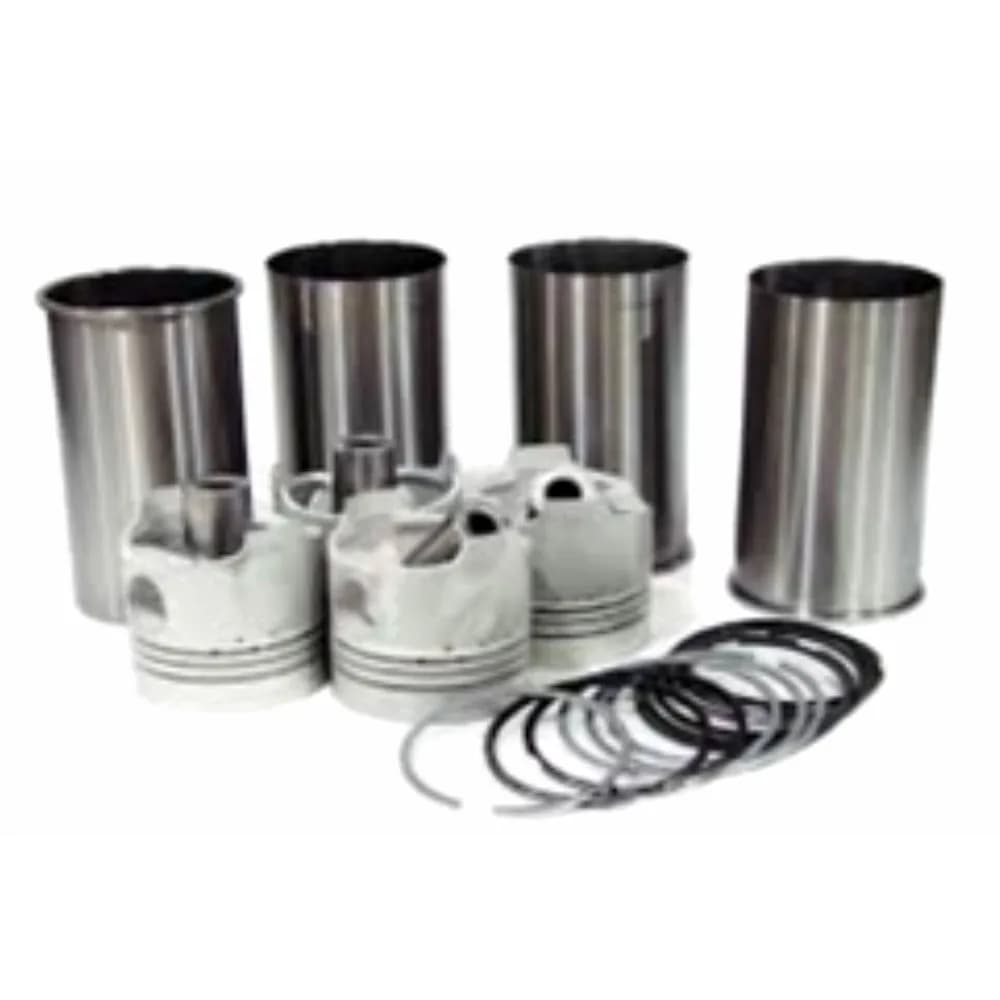

Pistons are supplied in standard size and oversize steps (commonly 0.25 mm, 0.50 mm and larger) for rebored cylinders. Some engines use cylinder liners, in which case pistons are usually supplied in standard size with new liners. Some OEMs also grade standard pistons into small size classes to match cylinder bore measurements.

Failure drivers

Overheating, poor fuel atomization from worn injectors, dust ingestion, low oil pressure and incorrect piston-to-valve clearance cause scuffing, cracked bowls, burnt crowns and ring land failure.

Applications

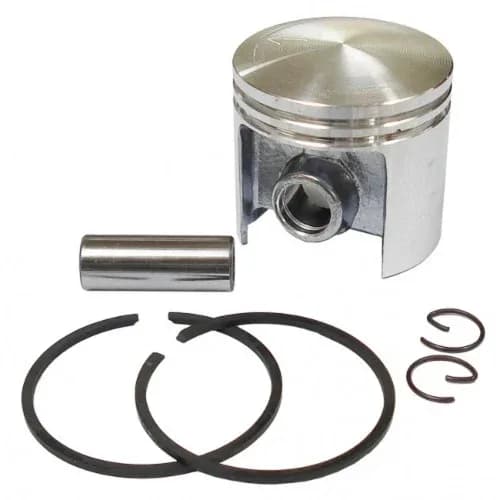

Diesel engines such as Toyota's 1KD and 1GD, Isuzu's 4JJ1 and the 4HK1 used in the Isuzu NPR each have specific piston designs, sometimes varying by output rating and emission level. Pistons are frequently sold as part of overhaul kits.
