Engine & Vehicle Sensors

Engine and vehicle sensors provide the data that engine control units use to manage fuel injection, ignition, emissions and safety systems. Sensor faults are a common reason for warning lights, limp mode and no-start conditions, and incorrect replacements are one of the biggest sources of returns in electrical parts.

Main sensor groups

• Crankshaft and camshaft position sensors – inductive (two-wire, AC signal) or Hall-effect (three-wire, digital signal). Essential for engine start and injection timing.

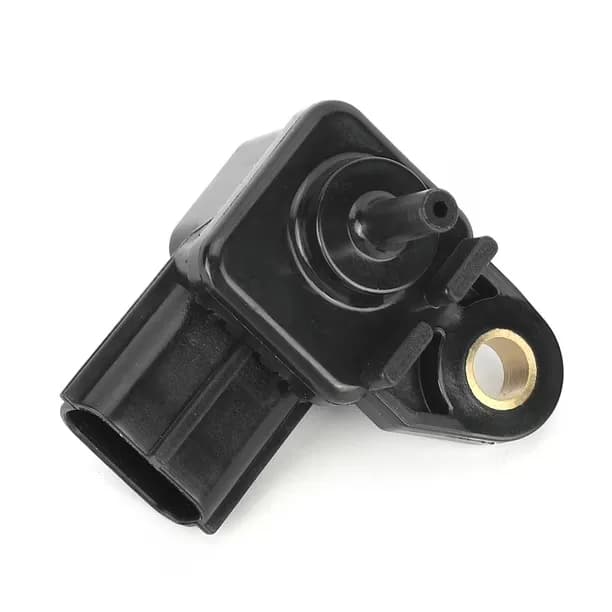

• Air flow and pressure – mass air flow (MAF) sensors, often with integrated intake air temperature; manifold absolute pressure (MAP) and boost pressure sensors.

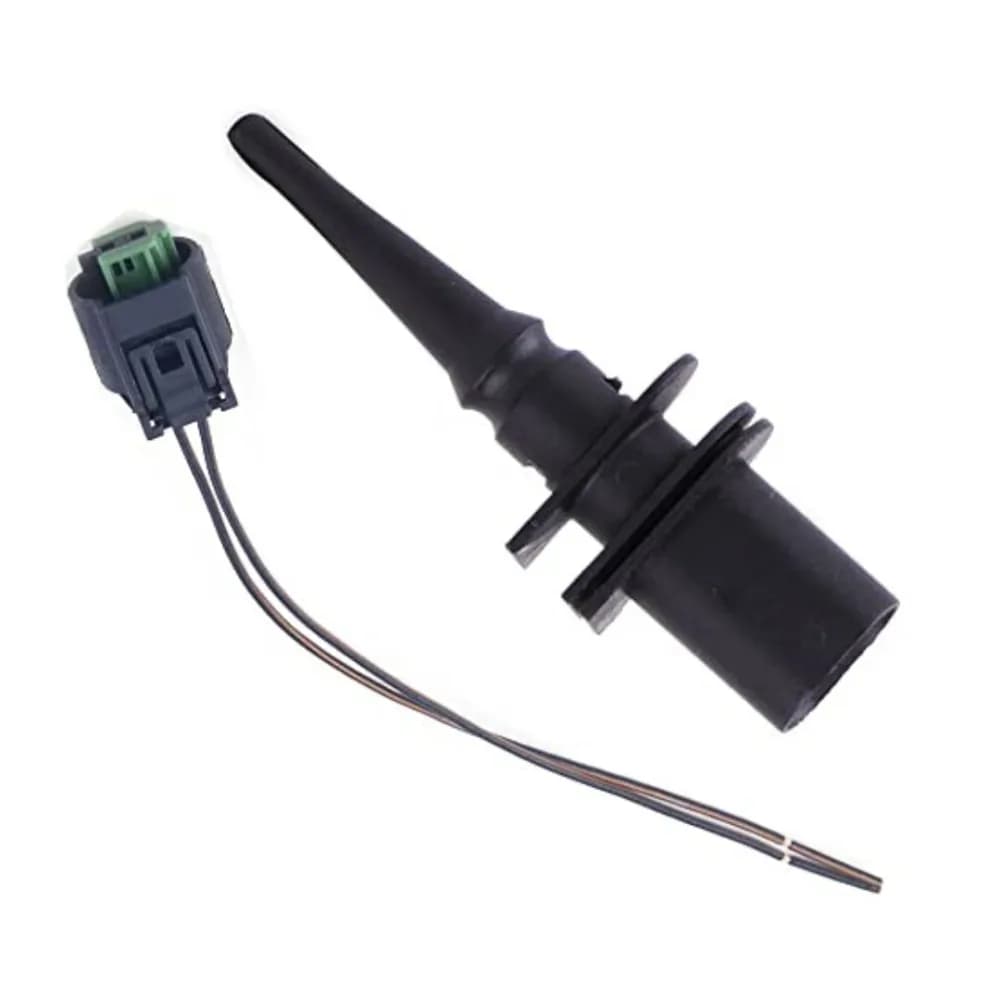

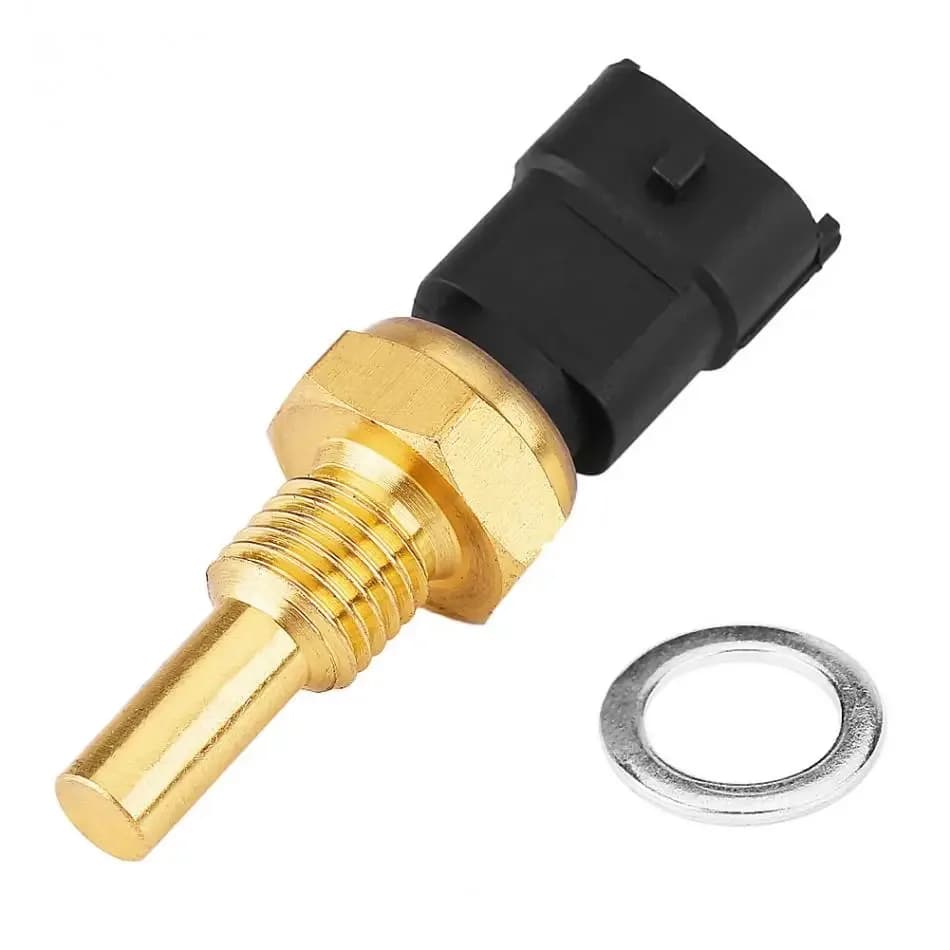

• Temperature – coolant, intake air, fuel and exhaust gas temperature (EGT) sensors, mostly NTC thermistors or thermocouples.
• Exhaust and emissions – oxygen (lambda) and wide-band air-fuel ratio sensors on gasoline engines; DPF differential pressure, NOx and EGT sensors on newer diesel engines.
• Fuel system – fuel rail pressure sensors on common-rail diesels, water-in-fuel sensors, fuel level senders.
• Others – knock sensors, oil pressure switches and sensors, vehicle speed and wheel speed sensors, throttle and accelerator pedal position sensors.

Why exact matching matters

Sensors with identical housings may have different resistance curves, signal types, output ranges or connectors. The ECU software expects a specific characteristic. Diesel pickups such as the Toyota Hilux and Mitsubishi Triton have evolved through several emission levels, each with sensor changes.

Failure drivers

Heat cycling, vibration, contamination from oil and soot, water ingress at connectors, damaged wiring, and secondary effects such as clogged DPFs or EGR systems. Replacing a sensor without diagnosing the root cause often results in a repeat failure. For ABS sensors, see ABS components.
