Brake Shoes

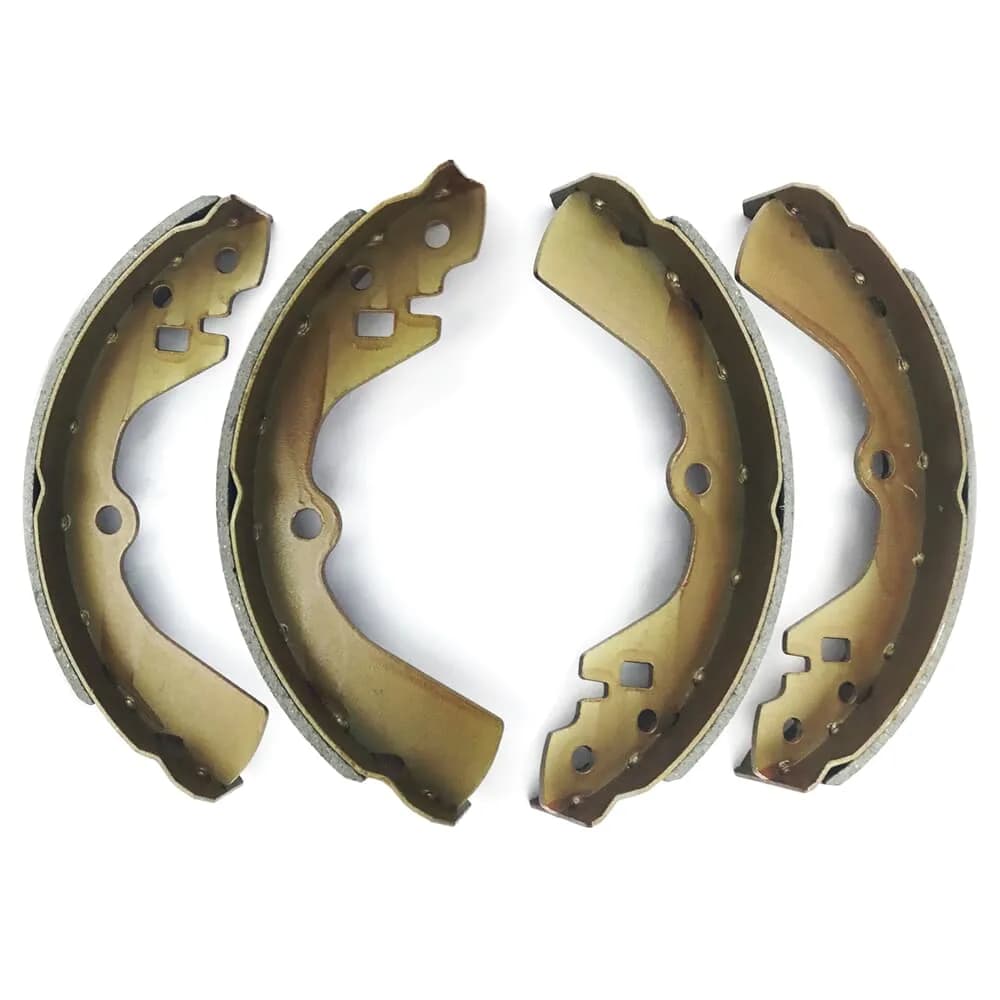

Drum brake shoes and parking brake shoes for pickup rear axles, vans and light trucks, with bonded or riveted asbestos-free linings on steel shoe platforms.

Products

65 products

About brake shoes

Brake shoes work inside drums and remain standard on the rear axles of most pickups and many vans and light trucks. They last longer than front pads on most vehicles but are exposed to water, mud and dust, which accelerates wear in off-road and rural use.

Types

  • Leading/trailing shoes – typical rear drum setup on pickups, with one leading and one trailing shoe per wheel.
  • Duo-servo shoes – self-energizing designs used on some vehicles and in drum-in-disc parking brakes.
  • Parking brake shoes – small shoes running inside the hat section of rear discs.
  • Truck shoes – heavier shoes with replaceable riveted linings; see truck brake parts.

Construction

Linings are bonded (glued and cured) or riveted to a pressed or welded steel shoe. Bonded linings allow more usable friction material; riveted linings are common in heavy-duty applications and allow relining. Lining width, arc length and thickness, shoe web design and adjuster cutouts all affect fitment. Lining ends should be chamfered to reduce noise and grab, and the lining should sit flush to the shoe table without gaps along its length.

Wear and replacement drivers

Overloading, water crossings and mud entering the drum, poorly adjusted self-adjusters and contaminated linings from leaking wheel cylinders or axle seals are frequent causes of shoe replacement. That is why shoes are often ordered together with brake drums, wheel cylinders and hardware kits for vehicles such as the Isuzu D-Max.

Buying & specification guide

  • OEM number, model, drive type and year; 2WD and 4WD pickups can use different drum sizes.
  • Dimensions: drum diameter the shoe fits, lining width and thickness.

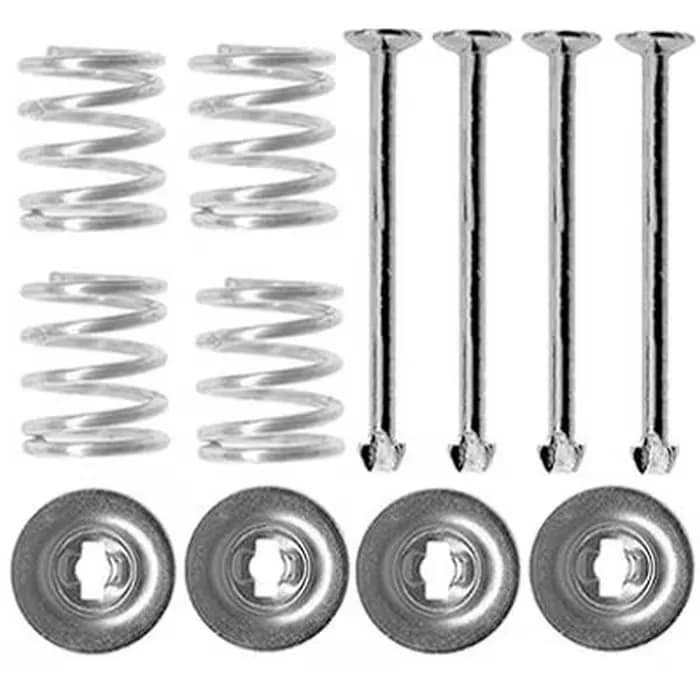

  • Set definition: confirm whether a set covers one axle (four shoes) and whether hardware, springs or adjusters are included.
  • Parking brake shoes are a separate reference from service shoes.
  • Asbestos-free declaration for every lining.
  • Packaging: axle-set boxes that keep linings clean and dry; oil or moisture contamination ruins friction material.
  • Friction grade: for work pickups and vans that carry heavy payloads, ask for a grade with good heat stability. Rear shoes also provide the parking brake function on many pickups, so static friction matters.

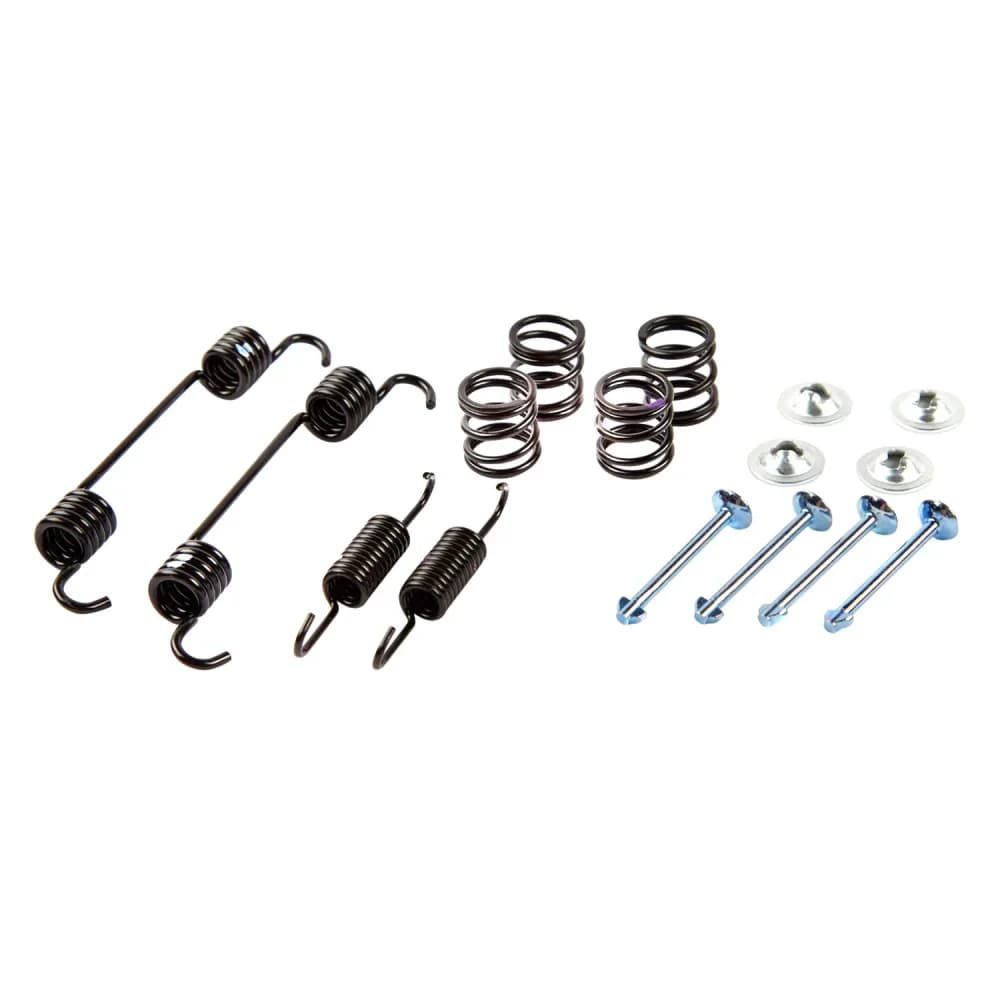

  • Related lines: stock wheel cylinders, spring and adjuster kits and drums for the same references. Workshops frequently need all of them for one job, and missing hardware delays vehicles.
  • Shoe platform quality: check that webs are straight, lining edges are chamfered and adjuster slots are correctly positioned.

Export supply

Brake Shoes can be quoted on FOB, CFR, CIF, FCA or EXW terms and combined with other product groups in a single consolidated container. Send part numbers, quantities and destination port for a validated quotation.

Export processMixed container ordersShipping & logistics

Frequently asked questions

Should wheel cylinders be replaced with brake shoes?

Not always, but a leaking wheel cylinder contaminates new linings immediately. Many workshops inspect or replace cylinders and springs at the same time, so stocking them alongside shoes is sensible.

Are bonded or riveted linings better?

Both work when correctly made. Bonded linings are common on light vehicles; riveted linings are standard on heavy trucks and allow relining of the shoe platform.
