Tie Rod Ends

Inner and outer tie rod ends for rack-and-pinion and linkage steering on pickups, SUVs, vans and trucks, specified by taper, thread direction and side.

Products

33 products

About tie rod ends

Tie rod ends connect the steering system to the wheel knuckles and transmit steering movement while allowing suspension travel. Worn tie rod ends cause steering play, wandering, uneven tire wear and misalignment, and they are one of the most frequently replaced steering parts on pickups used on rough roads.

Inner and outer ends

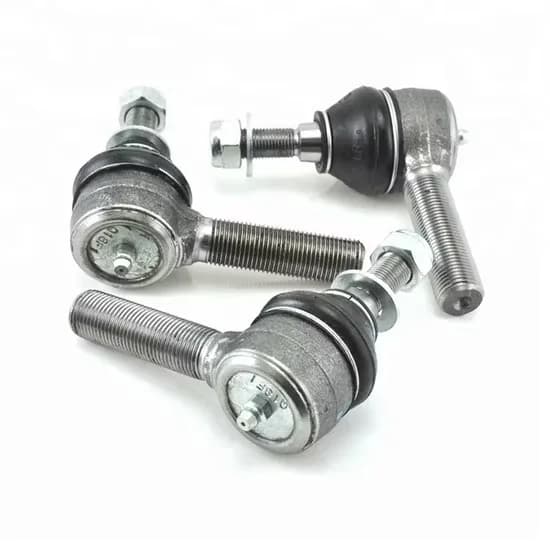

  • Outer tie rod ends – ball-stud joints that fit the knuckle taper and thread onto the tie rod or rack end. They are the high-volume part.

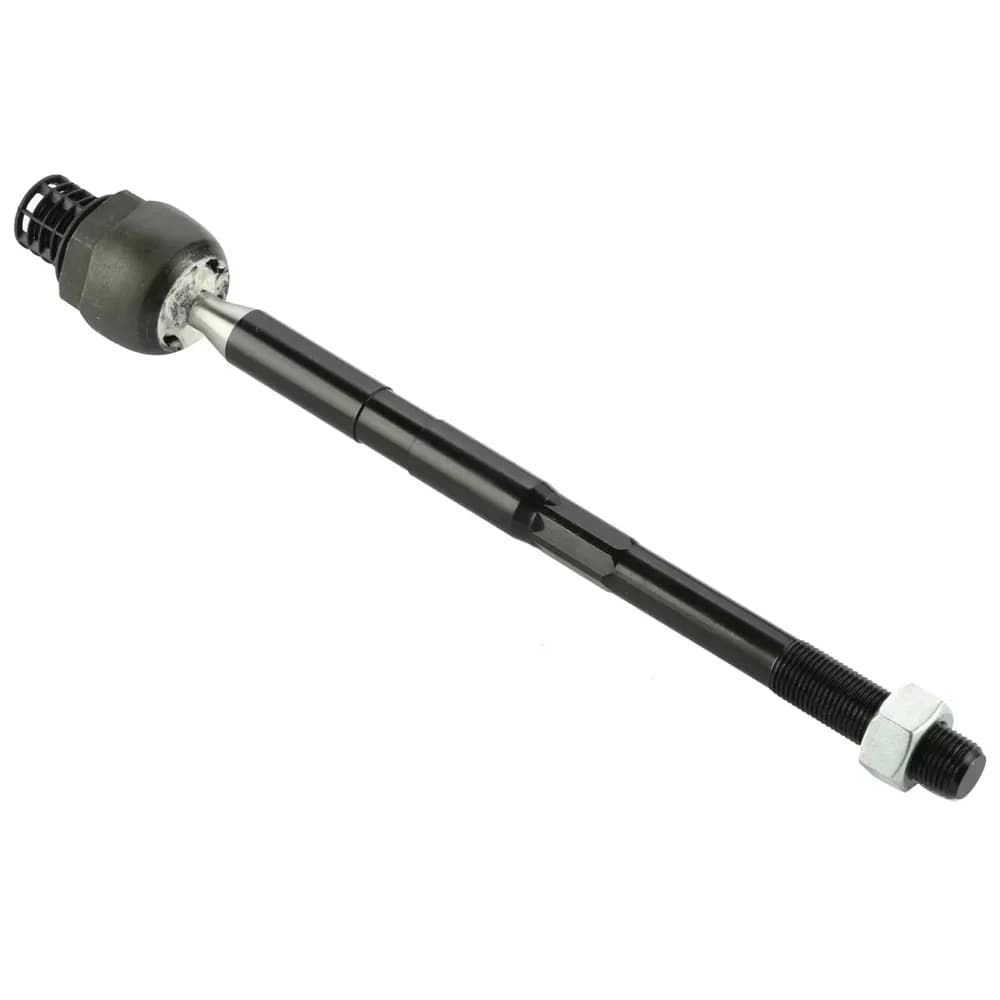

  • Inner tie rod ends (rack ends) – threaded into the steering rack on rack-and-pinion systems; see rack ends.
  • Linkage-type steering – older pickups and trucks with recirculating-ball gearboxes use tie rod ends with adjusting sleeves, plus idler arms, pitman arms and center links.

Specification points

  • Taper dimensions and stud thread
  • Internal or external thread for the tie rod, and thread size
  • Thread direction: left- or right-hand thread, which often differs by side
  • Overall length and body shape
  • Sealed or greaseable design, boot type

Vehicle and market notes

Pickups such as the Isuzu D-Max use rack-and-pinion steering on independent front suspension. Light and medium trucks use beam axles with cross tubes and drag links whose ends are larger and heavier. Left-hand-drive and right-hand-drive versions often differ in drag link and steering component design, so drive side should be recorded. After fitting, a wheel alignment is required; misalignment left unadjusted will quickly wear new tires.

Buying & specification guide

  • OEM number and position: outer left, outer right, inner, or drag link end.
  • Thread direction and size – a common source of returns when sides are mixed up.
  • Taper and stud thread for the knuckle.
  • Steering type: rack-and-pinion or linkage; LHD or RHD for linkage and truck components.
  • Kits: some buyers prefer inner and outer ends together, or complete steering linkage kits for older pickups.
  • Quality checks: consistent movement torque, boot fit and grease fill; stud nut and cotter pin included.
  • Packaging: individual boxes with thread and boot protection. Label left and right clearly on the outer box.
  • Quality checks on arrival: compare stud taper and thread against a known good part, and check that boots are fully seated with retaining rings in place.
  • Heavy-duty options: trucks and pickups with large tires or bull bars put extra load on steering joints; greaseable versions suit fleet maintenance programs.
  • Stock depth: outer tie rod ends for the main pickup platforms are high-volume items and justify deeper stock than most other steering parts.

Export supply

Tie Rod Ends can be quoted on FOB, CFR, CIF, FCA or EXW terms and combined with other product groups in a single consolidated container. Send part numbers, quantities and destination port for a validated quotation.

Export processMixed container ordersShipping & logistics

Frequently asked questions

Are left and right tie rod ends the same?

Sometimes, but many vehicles use opposite thread directions or different shapes for each side. Always check the OEM reference per side.

Is alignment needed after replacing tie rod ends?

Yes. Tie rod length sets toe alignment. Even careful measurement during fitting does not replace a proper alignment check.
