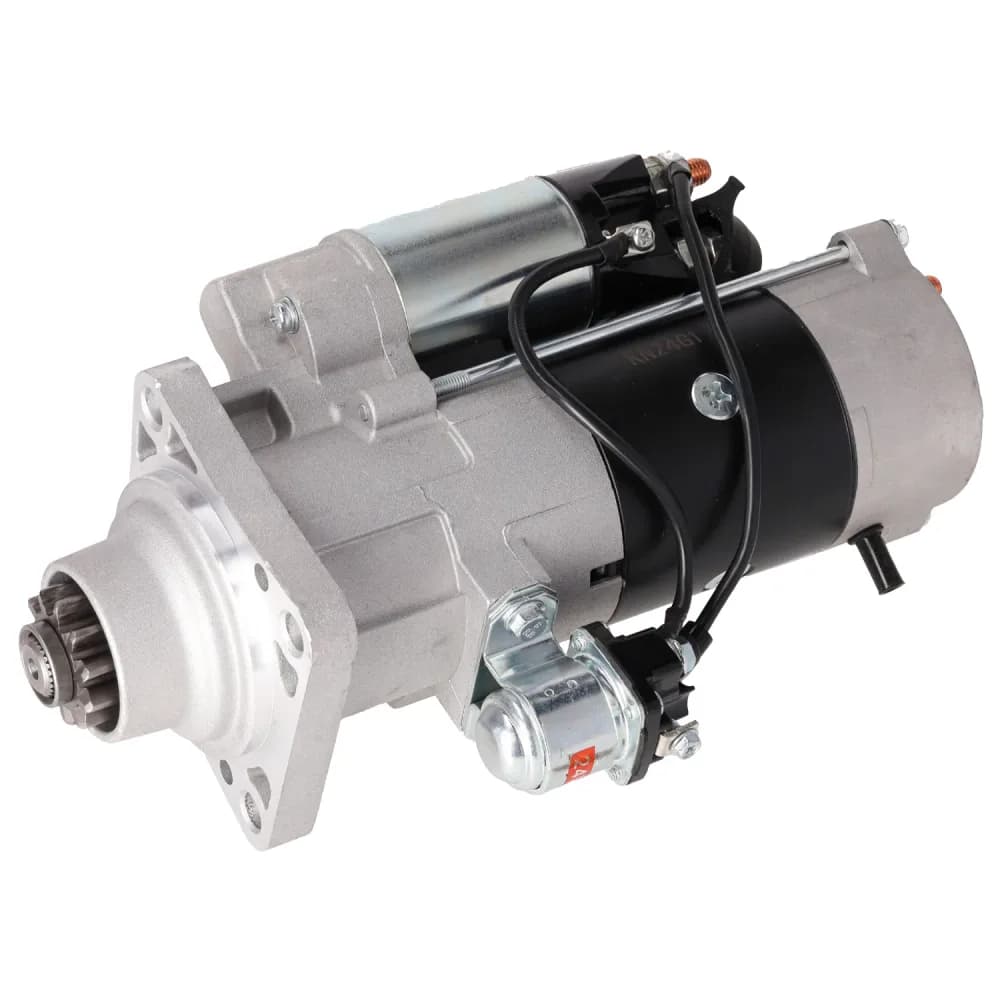

Starter Motors – Wholesale & Export from Thailand

Starter motors crank the engine for starting. Diesel engines with high compression ratios need powerful starters, and work vehicles that start and stop frequently place heavy duty cycles on them.

Types

Gear-reduction starters – a small high-speed motor drives the pinion through reduction gears. Lighter and more powerful for their size; standard on most modern Japanese vehicles.
Planetary gear reduction – compact reduction starters with planetary gear sets.
Direct-drive starters – the armature drives the pinion directly; found on older and some heavy-duty applications.
24V truck starters – high-output units, typically rated at several kilowatts, for medium and heavy trucks and buses.

Specifications

Voltage and power rating (kW)
Pinion tooth count and module, and pinion rotation (clockwise or counterclockwise)
Mounting flange diameter and bolt hole arrangement
Solenoid terminal layout and connector type
Overall length and position of the solenoid relative to the flange

Failure drivers

Solenoid contact wear, brush wear, pinion and bendix drive wear, bearing wear, and water and mud ingress on low-mounted units, particularly after water crossings. Weak batteries and poor cable connections cause excessive current and heat, shortening starter life.

Applications

Diesel pickups such as the Toyota Hilux and trucks such as the Isuzu NPR require starters matched to the engine and transmission bellhousing. Manual and automatic versions of the same vehicle can use different starters. Starter repair parts are listed under starter components.

Buying & specification guide

OEM number and label number from the existing starter.
Voltage and kW rating.
Pinion: tooth count, module and rotation direction.
Mounting: flange diameter, bolt holes and their positions; transmission type (MT/AT).
Solenoid terminals: terminal sizes and connector.
New or remanufactured: evaluate core return feasibility for export markets.
Testing: request no-load and load test data for samples.
Packaging: individual rigid boxes with pinion and terminal protection. Starters are heavy and dense; plan carton weights and position them low in container loads.

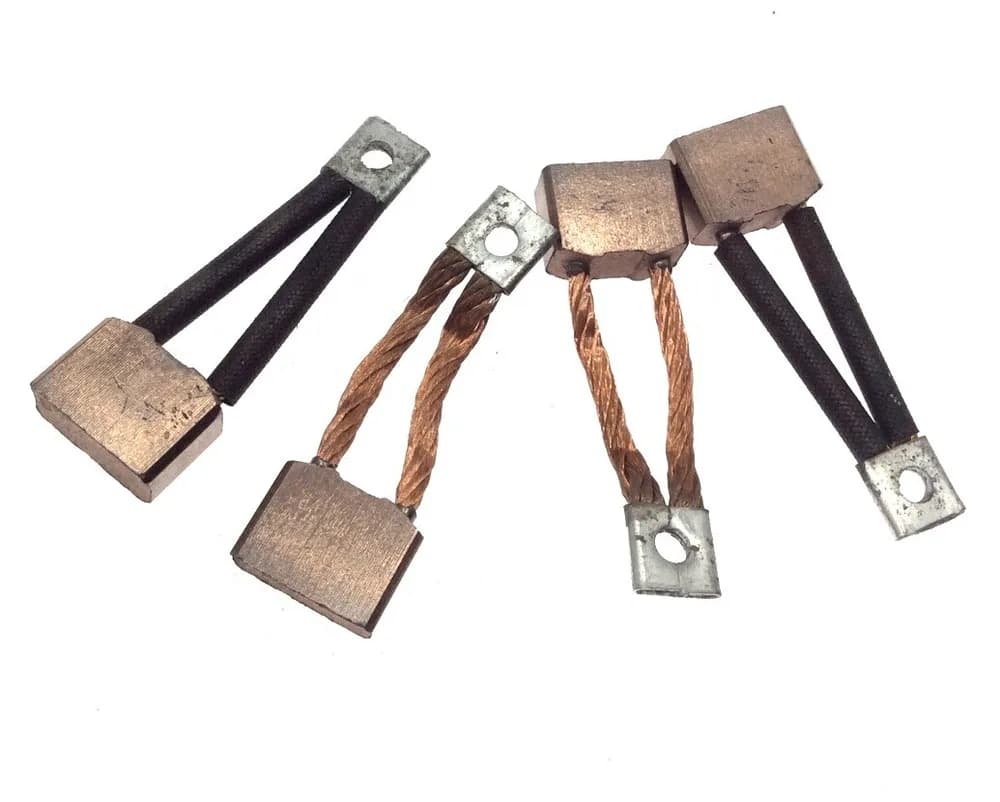

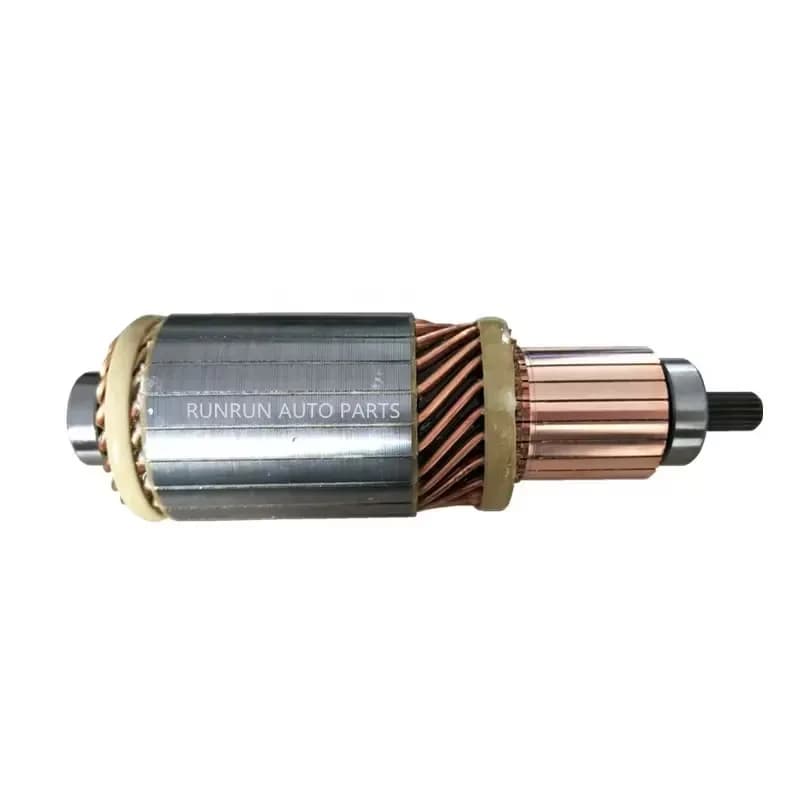

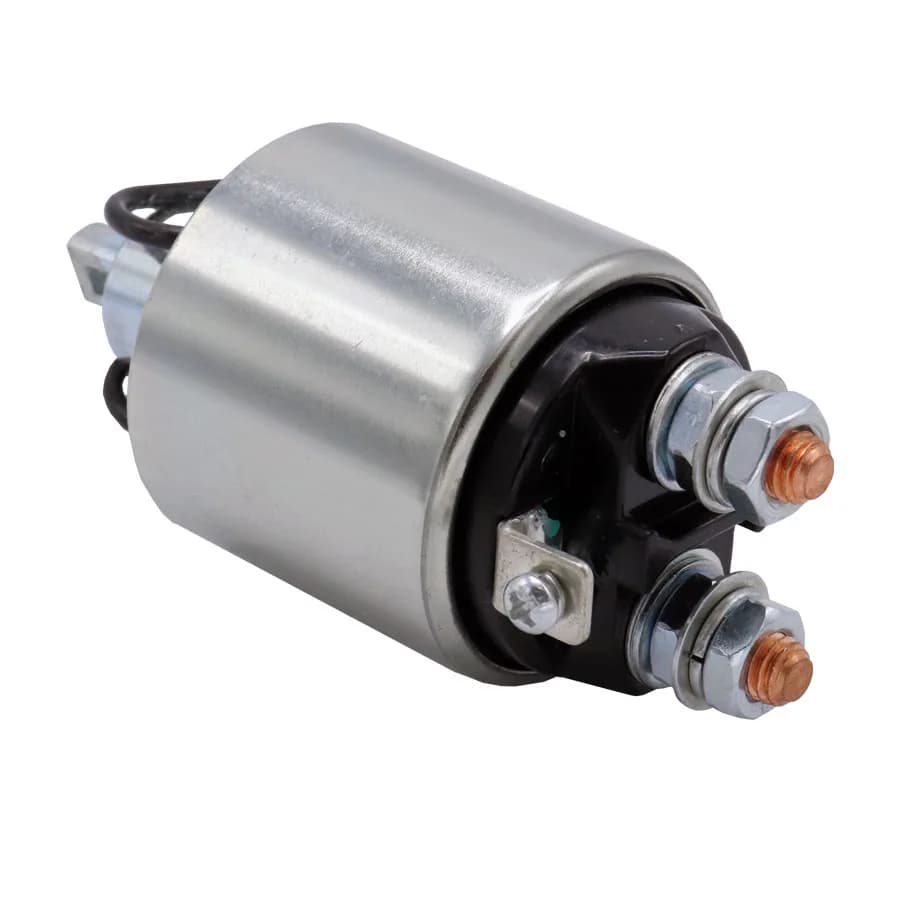

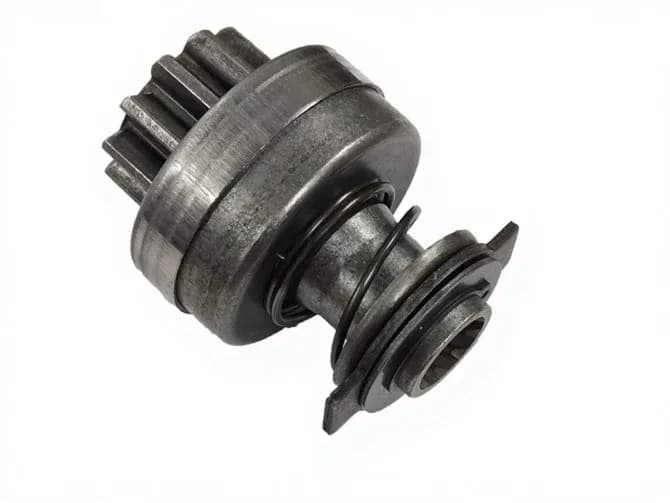

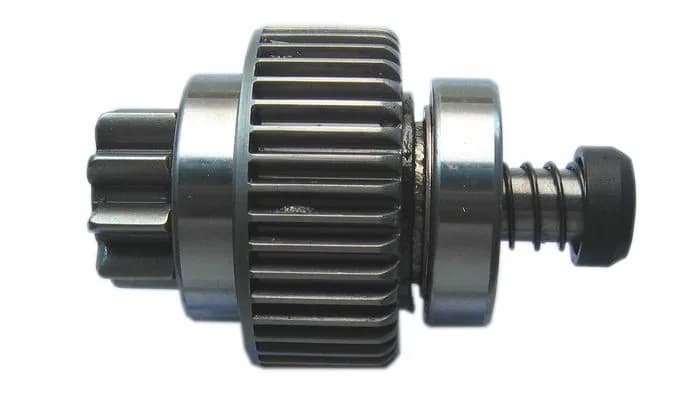

Complementary lines: solenoids, brushes, bendix drives and armatures support local rebuild shops and reduce the need for complete units.
Water exposure: for markets with frequent water crossings, ask whether sealed or better-protected versions exist for the main pickup references.
Warranty procedure: require battery condition and cable voltage-drop checks before accepting claims. Many starters returned as faulty were damaged by weak batteries or corroded cables.
Label accuracy: confirm that the label on each unit carries the reference, voltage and rating, since workshops identify replacement starters from the old unit's label.

Frequently asked questions

Do manual and automatic versions of the same vehicle use the same starter?

Not always. The ring gear position, flange and pinion can differ between manual flywheels and automatic flexplates. Check the OEM reference.

Why do starters fail after water crossings?

Water and mud can enter the starter housing and solenoid, causing corrosion of contacts, brushes and bearings. Low-mounted starters on pickups are particularly exposed.
