Ball Joints

Upper and lower ball joints for pickups, SUVs and vans in press-in, bolt-on and screw-in designs, sealed or greaseable, specified by taper, stud thread and position.

Products

26 products

About ball joints

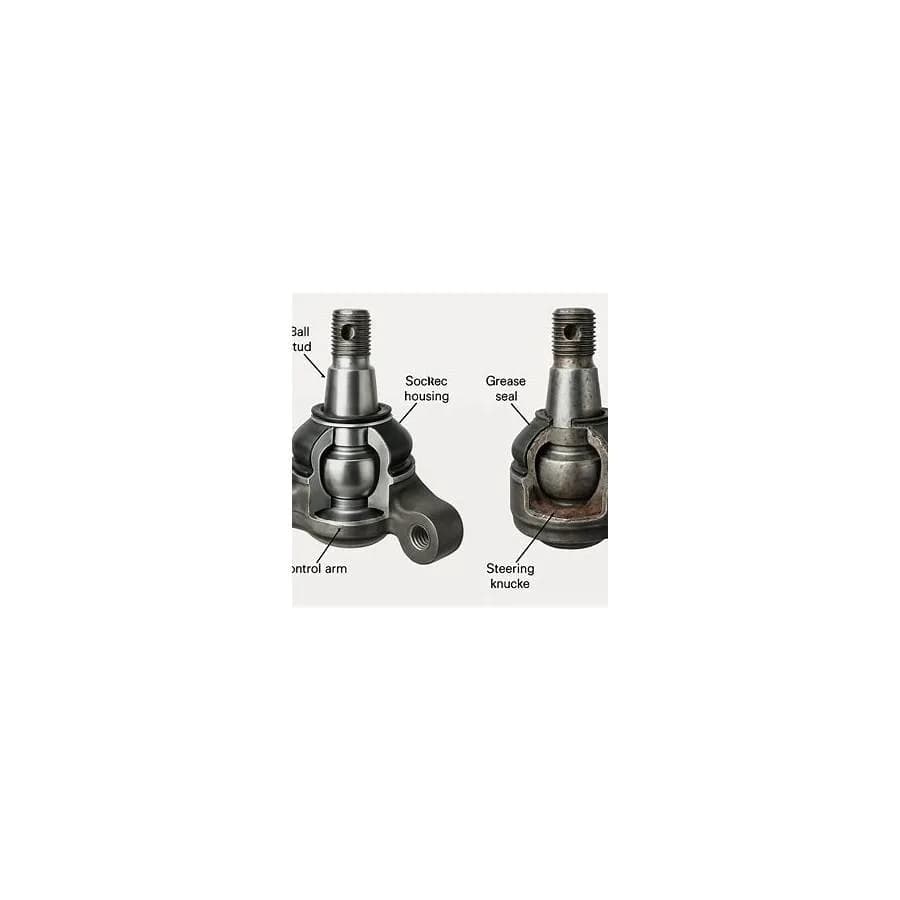

Ball joints are the pivots between control arms and steering knuckles. They carry vertical load and allow the wheel to steer and move through suspension travel. On pickups carrying heavy loads over rough roads, lower ball joints in particular take significant force and wear quickly when grease is lost through damaged boots.

Types

  • Press-in joints – pressed into the control arm and retained by interference fit or circlip.
  • Bolt-on joints – bolted to the arm with two to four bolts, common on Japanese pickups.
  • Screw-in joints – threaded into the arm.
  • Riveted or integral joints – part of the arm; replacement means a new arm or a bolt-on repair joint.
  • Load-carrying vs follower joints – depending on spring location, either the upper or lower joint carries most of the load.

Features

Sealed joints are pre-lubricated for life; greaseable joints have a grease nipple and suit fleets with regular maintenance. Boot material (neoprene, polyurethane) and retention rings affect service life in mud and water. Housing material, ball stud hardness and the bearing insert (steel or polymer) determine durability.

Specifications

Stud taper dimensions, stud thread size and length, flange shape and bolt hole spacing, housing diameter for press-in types, and overall height. Upper and lower joints are different parts, and some are side-specific. Stud nuts must be tightened to the specified torque and aligned with the cotter pin hole by tightening further, never by loosening, which is worth noting in fitting instructions. Joint replacement usually happens with tie rod ends and control arms.

Buying & specification guide

  • OEM number or vehicle details: model, 2WD/4WD, year and position (upper/lower, left/right).
  • Mount type: press-in, bolt-on or screw-in; include bolt pattern for bolt-on joints.
  • Stud details: taper, thread size and length.
  • Sealed or greaseable: choose based on how customers maintain vehicles.
  • Included parts: castle nut, cotter pin, bolts and grease nipple.
  • Quality checks: boot material and fit, stud surface finish, and consistent movement torque without free play.
  • Packaging: individual boxes with boot protection and thread caps. Loose joints in bulk cartons get damaged boots, which leads to early failure after fitment.
  • Complementary lines: stock control arms that include the joint for vehicles where the joint is not serviceable separately.
  • Grade choice: for fleets and rural buyers, consider greaseable heavy-duty joints on the high-volume pickup references, and sealed OE-style joints for passenger SUVs.
  • Pair planning: lower joints generally wear faster than upper joints on loaded pickups, so stock depth should reflect that difference.
  • Sample fitment: check a sample on the vehicle before volume orders. A small difference in taper or flange shape can make a joint unusable.

Export supply

Ball Joints can be quoted on FOB, CFR, CIF, FCA or EXW terms and combined with other product groups in a single consolidated container. Send part numbers, quantities and destination port for a validated quotation.

Export processMixed container ordersShipping & logistics

Frequently asked questions

How do I know whether a ball joint is replaceable separately?

Check the OEM parts catalogue. If the joint has no separate part number and is riveted or welded, the manufacturer supplies it only as part of the control arm. Aftermarket bolt-on replacements may exist for some riveted designs.

Why do new ball joints sometimes fail quickly?

Common causes are torn boots during installation, incorrect torque on the stud nut, lifted vehicles running extreme joint angles, and low-quality bearing inserts. Proper installation and correct geometry matter.
